Heavy-lift agricultural spraying platform
An architecture reference for an eight-rotor, 30-liter liquid-payload multirotor platform. This document walks through the component stack, the engineering rationale behind each subsystem selection, and the integration lessons learned during ground-up configuration of a heavy-lift agricultural UAV.
Platform overview
This reference architecture describes an X8 coaxial octocopter configuration, four arms, each carrying a coaxial motor pair, designed for sustained low-altitude agricultural spraying operations. The aircraft lifts a 30-liter liquid payload with a maximum take-off weight (MTOW) of 25 kg, providing approximately 12 to 15 minutes of active spray endurance per tank fill.
Concept illustration
The mission profile assumes repeated short-duration sorties: take-off from a field-adjacent staging point, a low-altitude grid pass at 4 to 6 meters above crop at speeds of 5 to 8 m/s, return-to-land for tank refill and battery swap, then relaunch. This operating rhythm places distinct demands on the powertrain, sustained high current draw during the spray pass, followed by a brief thermal soak during turnaround, repeated across a full operational day.
Unlike an inspection or mapping aircraft that cruises at partial throttle, an agricultural sprayer spends the majority of its flight at high throttle settings with a near-constant liquid mass that decreases as the tank empties. This changing center of gravity, combined with the aerodynamic disturbance from rotor downwash interacting with crop canopy, makes flight controller tuning and vibration management central engineering concerns.
Subsystem Selection
Component architecture
Each subsystem was evaluated against the platform's specific demands: high thrust-to-weight ratio at low altitude, tolerance for particulate and moisture ingress, and electrical architecture that supports sustained high-current operation across eight propulsion channels plus an independent spray pump circuit.
Flight controller & navigation
A Cube Orange+ running ArduPilot was selected as the primary flight controller, paired with a Here3 RTK GNSS module for centimeter-level positioning accuracy. The decision was driven by three factors: the controller's triple-redundant IMU architecture provides the vibration tolerance needed for a large coaxial octocopter; ArduPilot's built-in sprayer control logic supports variable-rate flow control tied to ground speed; and the dual CAN bus ports enable direct connection to CAN-protocol ESCs without an intermediate signal converter.
The RTK base station is configured as a local reference, a tripod-mounted unit deployed at the field edge, eliminating dependency on NTRIP corrections in areas with unreliable cellular coverage. Terrain-following is handled through a downward-facing lidar rangefinder (LightWare SF11/C) interfaced over I2C, providing 0 to 100 meter range with a 100 Hz update rate.
ESC & motor configuration

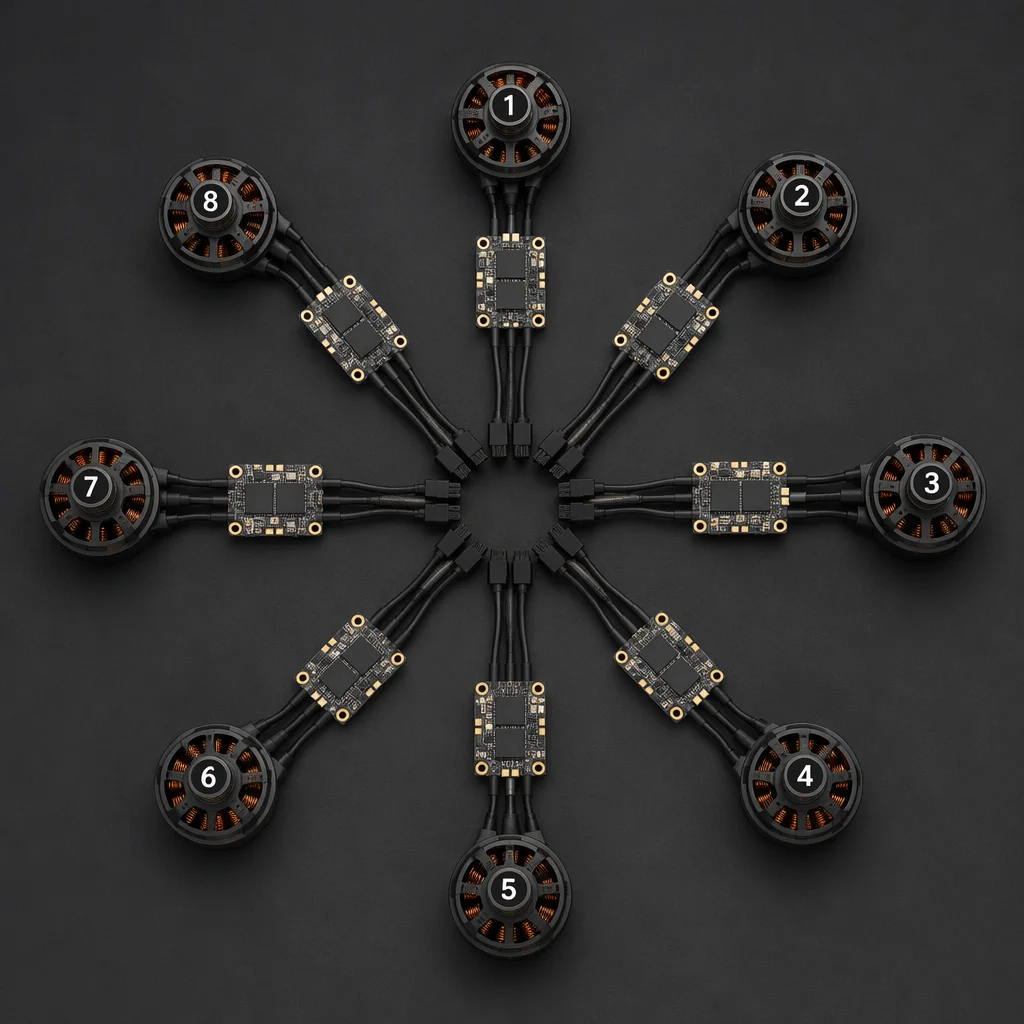

The propulsion system uses eight Hobbywing XRotor 80A 12S ESCs communicating over CAN bus with full telemetry feedback, per-channel RPM, current draw, MOSFET temperature, and error flags. CAN was chosen over PWM or DShot for this application because the telemetry data enables proactive detection of a failing ESC before it manifests as in-flight instability, a critical consideration on a single-point-of-failure octocopter platform.
Concept illustration
Motors are 100KV outrunners wound for 12S operation, each driving a 30-inch carbon-fiber folding propeller. The low KV rating matches the large propeller diameter, 30-inch props on a 100KV motor at 12S (approximately 44.4 V nominal) produce a theoretical no-load RPM of roughly 4,440, with loaded RPM settling into the 3,200 to 3,600 range where these props develop optimal thrust efficiency. The coaxial arrangement recovers approximately 15 to 18 percent more thrust per arm compared to a flat octocopter layout at the same wheelbase, at the cost of slightly reduced efficiency on the lower propeller due to inflow interference from the upper rotor.
Power distribution & energy storage
The power architecture centers on a 400-amp-rated power distribution board (PDB) with 4-ounce copper traces on all high-current paths. Input is from dual 6S 22,000 mAh LiPo packs wired in series for 12S nominal (44.4 V), connected through XT90-S anti-spark connectors. The PDB provides eight dedicated ESC power pads plus an isolated 12 V regulated output for the spray pump controller, preventing pump motor noise from coupling back onto the avionics power rail.
A dual-redundant BEC configuration supplies regulated 5.3 V to the flight controller and companion electronics. The primary BEC draws from the main battery bus; a secondary independent BEC powered by a small 2S buffer battery provides fallback power to the flight controller and GNSS receiver, ensuring controlled return-to-launch capability in the event of a main power system failure.
Airframe & structural design
The airframe is a 1,600 mm wheelbase folding octocopter platform constructed from carbon-fiber tube arms (30 mm diameter) with CNC-machined aluminum motor mounts and a central hub assembly. The hub incorporates an IP54-rated sealed electronics bay with a breather valve to equalize pressure without admitting moisture or agricultural chemical mist. Arm attachment uses a dual-pin locking mechanism that folds for transport without disconnecting motor wiring, a practical necessity for field operations where the aircraft moves between paddies on a utility vehicle.
The 30-liter spray tank mounts to the underside of the hub via four vibration-dampened quick-release brackets with tool-less attachment. Tank positioning was modeled to place the liquid payload center of mass directly beneath the aircraft center of thrust, minimizing pitch and roll trim changes as the tank empties. The landing gear is a tall-profile skid design providing 350 mm of ground clearance. Necessary to accommodate the spray boom when the aircraft is loaded and sitting on uneven terrain.
Spray system integration
The liquid delivery system comprises a centrifugal pump driven by a dedicated brushless motor controller, a 4-nozzle spray boom spanning 1,800 mm, and an inline electromagnetic flow rate sensor that feeds actual discharge data back to the flight controller. The pump controller accepts a PWM command signal from the flight controller auxiliary output, scaled against ground speed from the GNSS receiver to maintain a constant application rate per hectare regardless of aircraft speed.
Concept illustration
Nozzle selection, hollow-cone ceramic tips with 1.0 mm orifice, was determined by the target droplet size range of 120 to 180 microns, balancing coverage uniformity against drift risk. The flow rate sensor provides closed-loop verification: if actual flow deviates beyond a configurable threshold from the commanded rate, the flight controller logs a warning and can trigger an automatic return-to-land. Power for the pump system runs on an isolated circuit from the main PDB, with a dedicated 30 A fuse and LC filter to suppress conducted EMI back onto the avionics bus.
Design Rationale
Key engineering decisions & trade-offs
Several architectural decisions involved trade-offs between competing priorities. These are documented here because they represent recurring judgment calls in heavy-lift multirotor design that apply beyond this specific reference platform.
Coaxial X8 vs. flat octocopter
The coaxial configuration reduces the wheelbase requirement by approximately 30 percent for a given propeller diameter. A 1,600 mm coaxial frame carries eight 30-inch props, whereas a flat octocopter would require a wheelbase exceeding 2,100 mm to clear the same prop arc. The trade-off is propeller efficiency: the lower rotor on each arm operates in the upper rotor's induced downwash, losing roughly 8 to 12 percent aerodynamic efficiency. For an agricultural platform where compact footprint for field transport outweighs the endurance penalty of coaxial losses, the X8 configuration is the pragmatic choice.
CAN ESC protocol over DShot or PWM
DShot offers simpler wiring and lower latency, but provides no telemetry feedback. The flight controller knows what command was sent but not what the ESC actually delivered. CAN protocol ESCs report per-channel current, temperature, and RPM at 10 Hz or faster. On an eight-motor platform where a single failing ESC can precipitate a crash, the diagnostic value of per-channel telemetry justifies the additional CAN transceiver hardware and the marginally more complex wiring harness. The flight controller runs a background health monitor that compares per-channel current draw against the fleet average, flagging outliers as potential pre-failure indicators.
12S high-voltage architecture vs. 6S
Operating at 12S (44.4 V nominal) rather than 6S (22.2 V) halves the current for the same total power output, which reduces I²R losses in the PDB, wiring, and ESC FETs. For a platform drawing 3,000 to 4,000 watts total during a spray pass, the difference between 12S at roughly 80 A and 6S at roughly 160 A is substantial in terms of connector heating, wire gauge requirements, and MOSFET thermal margin. The trade-off is that 12S battery management requires careful cell balancing across a 12-cell series string, and the higher voltage demands more attention to creepage and clearance distances on the PDB layout.
Integration Lessons
What this reference teaches
This document is an engineering reference, it describes the component architecture and design rationale for a representative heavy-lift agricultural platform, not a specific customer deployment. The configuration reflects decisions that any engineering team would encounter when designing a large-frame multirotor for sustained high-thrust liquid-payload operations.
Several integration patterns documented here apply broadly: the use of CAN-bus ESC telemetry for predictive maintenance on multi-motor platforms, the dual-BEC architecture for redundant avionics power, the isolated spray-pump power rail to prevent motor noise coupling, and the coaxial-versus-flat layout analysis that informs frame sizing. Teams building platforms in adjacent categories, large-frame logistics delivery, firefighting water-drop, or heavy sensor gimbals, will recognize the same powertrain scaling and vibration management challenges.
Educational purpose: EMS Drone publishes these references to support informed component selection and subsystem integration. Every aircraft configuration must be validated against the specific operating environment, regulatory framework, and mission profile of its intended deployment. This reference is a starting point for engineering discussion, not a certified or type-approved design.
Cost structure
What this reference costs to build
Procurement of a platform like the X8 reference above splits into six cost bands. The table below shows the relative magnitude of each band for a single-aircraft build at low volume; the point is not the absolute figures but where the money concentrates as the aircraft scales.
| Cost band | Propulsion & power hardware — eight 80A 12S CAN ESCs, four 100KV motors, 30-inch folding props, dual 6S 22,000 mAh packs, and the 400 A power distribution board. This is the single largest line item on a heavy-lift multirotor and it scales almost linearly with frame size: doubling thrust capacity roughly doubles propulsion spend, while fuselage and avionics costs grow sub-linearly. Expect this band to dominate the bill of materials. |
|---|---|
| Frame & structure | Airframe — carbon tube arms, CNC aluminium motor mounts, the folding mechanism, and the high-clearance landing gear that keeps a 1,800 mm spray boom clear of the crop. The 350 mm ground clearance requirement is a structural cost, not a styling choice: undersized gear means nozzle strike and boom damage on the first uneven field. |
| Avionics & navigation | Flight control stack — the triple-redundant IMU flight controller, RTK GNSS module, tripod-mounted local base station, and the downward lidar rangefinder for terrain following. RTK hardware is a modest share of spend but the base-station logistics (one unit per operating crew, not per aircraft) is the recurring cost that fleet operators underestimate. |
| Spray system | Liquid handling — 30 L tank, pump, flow controller, pressure regulator, the 1,800 mm four-nozzle boom, and ceramic hollow-cone nozzles. The nozzle set is consumable: ceramic resists abrasive formulations far better than brass, but even ceramic tips wear over a season of high-volume spraying and should be budgeted as a replacement part. |
| Field engineering & spares | The most commonly underestimated band. Site survey, RTK base setup, ground-rig tuning, first-flight validation, and the spares kit (props, arms, motors, ESCs, nozzles, batteries) that keeps a working aircraft working. On agricultural platforms the field-engineering and spares draw typically exceeds the avionics line and surfaces only after the first season of operation. |
| Integration & verification | Turning components into a flightworthy aircraft — powertrain bench validation, vibration characterisation, endurance test flights, and the tuning hours that convert a component list into a repeatable mission profile. This is skilled labour, not hardware, and it does not shrink when you buy cheaper parts. |
Two of these bands — field engineering and integration labour — are the ones buyers most often omit from an initial budget and then discover mid-project. A component quotation that stops at the hardware line is not a build budget. Worth settling both bands against a configured quotation rather than a catalogue price.
Responsibility split
Who owns what: supplier vs. operator
Heavy-lift agricultural platforms couple a high-current propulsion system to a live chemical-payload system, so the boundary between supplier and operator responsibilities has to be explicit in writing. The table below reflects how that split is normally drawn on a component supply that stops short of a turnkey aircraft.
| Item | Supplier — component specifications, performance envelopes, and the validated interfaces between matched subsystems (ESC/motor/prop combination, PDB current ratings, CAN protocol compliance). Operator — integration of those components into a complete airframe and the airworthiness of the assembled aircraft. |
|---|---|
| Airframe structural integrity | Supplier — motor-mount and arm-end hardware to rated spec. Operator — the structural analysis of the assembled frame, arm-bending margins, and the validation of the coaxial thrust loading against the chosen tube geometry. |
| Flight tuning | Supplier — stable default parameters for matched stacks. Operator — the PID tuning, filter configuration, and failsafe behaviour for the specific all-up weight, payload, and CG travel of the finished aircraft. A stock tune does not survive the CG shift of a draining tank. |
| Chemical application compliance | Supplier — nozzle flow and droplet spectra to published spec. Operator — the application rate, buffer-zone compliance, operator licensing, and jurisdiction-specific chemical regulations. No component supplier assumes that liability. |
| Regulatory / airworthiness | Supplier — component-level conformity and the documentation needed for the operator's certification filing. Operator — registration, operating approval, and the mission-specific risk assessment. See the compliance reference for the component-level documentation set. |
| Firmware change re-qualification | Supplier — release notes and a compatibility statement identifying any change that alters control-loop timing, ESC protocol behaviour, or failsafe logic. Operator — re-running the full acceptance test set before any firmware upgrade reaches the field. A firmware change is a configuration change: an ESC or autopilot upgrade that shifts loop timing invalidates prior tuning and hover-validation results, and must be treated as a re-certification event, not a routine update. This clause turns a vague "compatibility" promise into a testable obligation. |
Cross-reference
Reference builds behind these numbers
Two real reference builds anchor the numbers above. Both are published as engineering references on this site, with their full component stacks and measured figures.
- The X8 agricultural platform itself. 1,600 mm folded wheelbase, 30 L spray payload, ~25 kg MTOW, 12–15 min per tank. The number that matters most in procurement is the wheelbase: a coaxial X8 achieves this thrust at 1,600 mm, where a flat octocopter needs more than 2,100 mm to carry the same load — and that extra half-metre of span changes the transport case, the trailer, and the storage footprint. Full configuration on the heavy-lift agricultural reference build.
- The long-endurance survey platform. A VTOL fixed-wing carrying a 5 kg LiDAR payload for 120 minutes on a 888 Wh pack, with a measured energy split of roughly 68% cruise / 22% payload / 7% avionics / 3% transition. The lesson that transfers to any heavy-lift project is the transition budget: 8 motors drawing ~1,200 W for under 90 seconds is a small share of total energy but a large share of peak current, and it sizes the PDB and connectors more than the cruise phase does. See the LiDAR mapping platform reference.
Procurement
Specification clauses for your RFQ
The figures above convert into clauses you can write into a component specification or purchase order so that acceptance is measurable rather than implied.
- Matched-stack performance: require thrust-per-arm and propeller RPM at a stated test voltage, with the coaxial efficiency factor measured, not assumed.
- ESC telemetry completeness: specify the exact fields required over CAN (per-channel current, RPM, MOSFET temperature, error flags) and the polling rate.
- Power-rail isolation: require the spray-pump rail to be electrically isolated with a stated noise figure, so pump transients cannot couple onto avionics.
- Firmware re-qualification trigger: any firmware release that alters control-loop timing or ESC protocol behaviour requires the supplier to issue a compatibility statement and the operator to re-run the acceptance test set before field release (see the responsibility split above).
- Structural validation evidence: require arm-bending and motor-mount fatigue analysis to the rated thrust, with the assumed load cases stated.
- Consumable wear specification: state a minimum service life (in hectares or hours) for nozzles and a replacement interval for props and bearings.
- Spares lead time: require a committed lead time for arms, motors, and ESCs, since a grounded aircraft costs more per day than any component line item.
