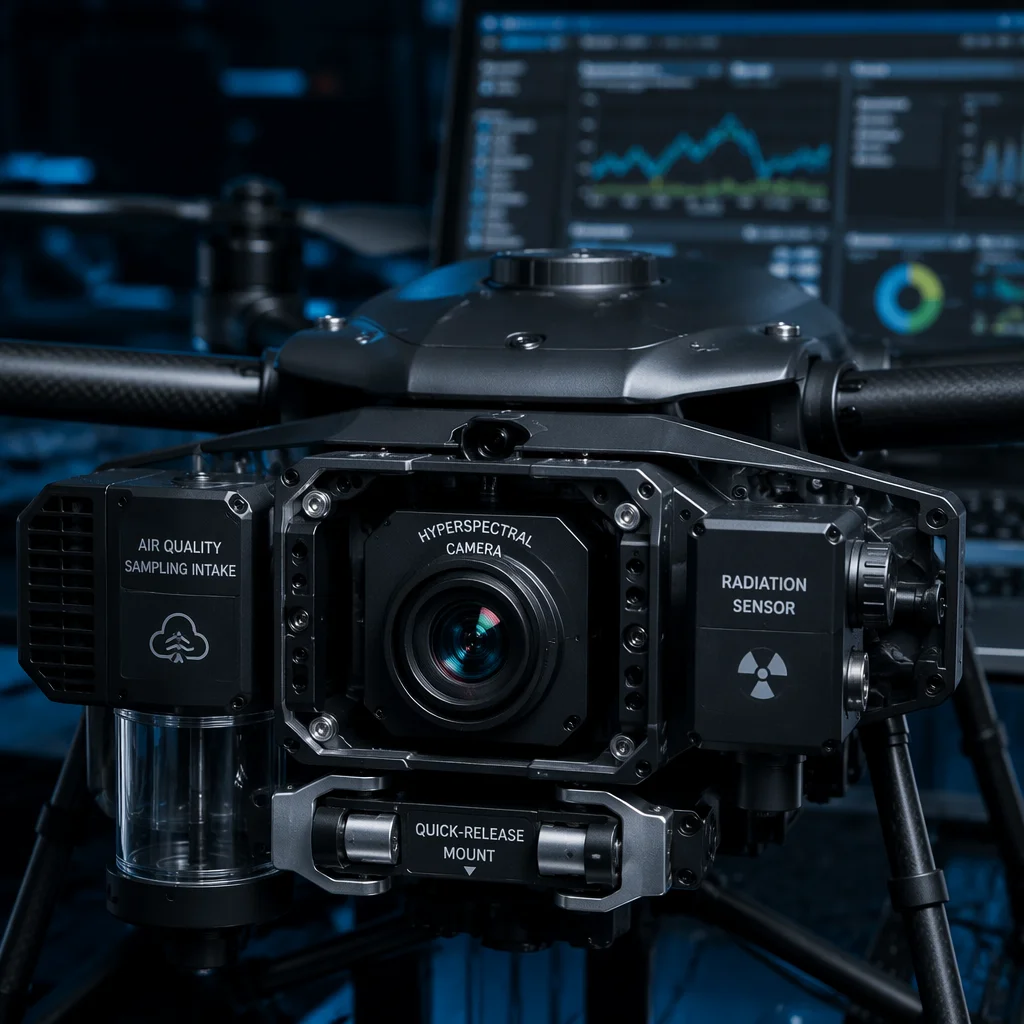

Modular UAV platforms purpose-built for academic and industrial R&D: open-architecture flight controllers, customizable sensor payloads, swarm-capable mesh nodes and prototyping-friendly component sourcing with low minimum order quantities.
Academic and industrial R&D groups need UAV platforms that adapt to changing experiment parameters. Unlike production UAVs built for a single mission, research aircraft must accommodate swapped sensors, modified control algorithms, repurposed payload bays and evolving communication architectures. This demands a fundamentally different procurement approach: open-source flight stacks with accessible parameter sets, airframes designed for modification rather than sealed integration, power systems with headroom for experimental loads, and suppliers comfortable with low-volume, iterative orders. The goal is not a finished product. It is a capable, documented, modifiable platform that accelerates the research cycle from simulation to flight test.
Each platform type serves a different research methodology, from closed-loop control experiments to field-scale environmental monitoring.
350-550mm wheelbase quadcopters designed for benchtop-to-flight experimentation. Standardized 30.5mm and 20mm FC mounting patterns accept Pixhawk, Cube and custom carrier boards. Open-frame construction with accessible wiring looms, swappable motor arms and configurable battery trays. Ideal for control algorithm development, sensor fusion experiments and flight dynamics research where rapid hardware changes between test sessions are essential.
1.2-2.0 meter wingspan airframes for aerial mapping, photogrammetry and environmental monitoring research. Removable wing panels for transport and sensor bay access. Multiple payload bays along the fuselage for nadir cameras, multispectral sensors and air sampling equipment. ArduPilot with terrain-following and survey grid automation provides repeatable flight paths for time-series data collection across seasonal field campaigns.
Compact 250-350mm quadcopters with onboard Wi-Fi and 868/915 MHz mesh radio for multi-agent research. Each node carries a companion computer (Raspberry Pi 4/5 or Jetson Nano) running ROS 2 with MAVLink bridge for offboard control. Standardized inter-drone communication protocol enables swarm coordination experiments, formation flight, cooperative search, distributed sensing and collision avoidance, with up to 10 simultaneous nodes.
700-1000mm class platforms with 5-15 kg payload capacity for large-sensor research: hyperspectral cameras, synthetic aperture radar, atmospheric sampling arrays and custom scientific instrumentation. X8 coaxial or hex-rotor configurations with redundant propulsion and dual-battery power architecture. High-voltage 12S power systems with current-monitoring telemetry for precise energy budget tracking during experimental flight profiles.
Research payloads evolve faster than airframes. A platform built for modular sensor integration protects the hardware investment across multiple research cycles.
Payload mounting rails with NATO-style accessory interfaces, combined with standardized power (5V/12V regulated, battery voltage passthrough) and data connectors (USB 3.0, UART, CAN, Ethernet). Sensor bays accept cameras, LiDAR units, multispectral arrays, air sampling modules and custom instrumentation without airframe modification. Quick-release mechanisms enable sensor swaps between flight sessions in under five minutes.
Full MAVLink v2 telemetry stream accessible on the companion computer interface for real-time sensor data logging, custom mission scripting and closed-loop experimental control. ROS 2 bridge packages for PX4 and ArduPilot enable offboard control from Python and C++ research codebases. Custom MAVLink message definitions supported for experimental sensor data types not covered by the standard dialect.
Custom sensor brackets, vibration-dampened mounting plates and aerodynamic fairings designed to your instrument specifications. 3D-printed prototypes in PLA, PETG or carbon-fiber-reinforced nylon for fit-check and flight testing. CNC-machined aluminum or carbon fiber plate production mounts for flight-weight optimization. Integration support covers center-of-gravity analysis, power budget verification and EMI/EMC isolation guidance.
Each application domain places different demands on the platform, and the component stack adapts accordingly.
| Computer Vision | Onboard GPU-accelerated processing (Jetson Orin NX/AGX) with high-bandwidth camera interfaces (MIPI CSI, GMSL2) for real-time object detection, visual SLAM, structure-from-motion and deep learning inference at altitude. Stereo camera rigs with calibrated baseline for depth estimation research. |
|---|---|
| Swarm Algorithms | Mesh-networked multi-agent platforms with synchronized clock sources, inter-drone ranging (UWB or Bluetooth AoA) and distributed control architectures. ROS 2 multi-machine communication over Wi-Fi 6 or private LTE for outdoor swarm experiments with ground-truth capture via motion-capture or RTK GPS. |
| Environmental Monitoring | Atmospheric sensing payloads for CO2, CH4, particulate matter (PM2.5/PM10), temperature and humidity vertical profiling. Air sampling canisters with solenoid-actuated collection for post-flight gas chromatography. Long-endurance fixed-wing platforms for transect sampling across kilometer-scale study areas. |
| Agricultural Science | Multispectral and hyperspectral sensor integration for vegetation index research (NDVI, NDRE, CCCI, SAVI). Thermal cameras for canopy temperature and water stress studies. Variable-rate application payloads for precision treatment trials with geotagged treatment logs synchronized to RTK-positioned flight paths. |
| Aerodynamic Testing | Instrumented testbed airframes with airspeed sensors (pitot-static), angle-of-attack vanes, multi-axis load cells and tuft-flow visualization cameras. Flight data logging synchronized with motor RPM, current draw and control surface deflection for full aerodynamic state capture during experimental maneuvers. |
Research procurement cycles differ from production purchasing. We structure our supply chain to support the way labs and R&D teams actually work.
Minimum order quantities of 1-10 units across all component categories. No volume commitments or long-term contracts. Re-order the same components six months later for the next phase of research with consistent specification. We maintain component availability tracking and can suggest alternatives when a part reaches end-of-life.
Submit a bill of materials with your preferred flight controller, ESCs, motors, airframe and payload components. We verify interface compatibility, flag potential integration issues and source everything from qualified suppliers. Where a specified component is unavailable, we propose drop-in alternatives with matching mechanical and electrical interfaces.
Partial shipments for phased assembly, start with the airframe and power system while finalizing sensor selection. Add payload and communication components in a subsequent order. Change motor specification after initial flight tests reveal different thrust requirements. The procurement process adapts to the research iteration cycle rather than forcing a single upfront commitment.
Each platform ships with a complete documentation package: connector pinout tables, power distribution wiring diagrams, component datasheets, firmware parameter dumps and integration notes. This documentation supports methodology sections in research papers, enables new lab members to reproduce the platform configuration and provides a reference baseline for modifications.
Research platforms are quoted on airframe and avionics, but the cost that decides whether a programme survives its first year is the iteration loop, not the airframe.
| Cost item | Order of magnitude | Primary driver |
|---|---|---|
| Airframe and propulsion | USD 2,000-15,000 per platform | Platform class, motor count, payload lift margin above the experiment |
| Avionics and autopilot | USD 800-6,000 per platform | Open-architecture FC, companion computer, sensor suite completeness |
| Sensor and interface adaptation | USD 500-8,000 per experiment | Custom mounts, protocol bridges, data capture and sync hardware |
| Integration and bench time | USD 1,000-6,000 per experiment | Interface bring-up, bench validation, parameter and log review |
| Spares and iteration parts | USD 300-4,000 per year | Airframe spares, replacement interfaces, revised mounts, cabling |
| Documentation and reproducibility | USD 200-1,500 per platform | Wiring schedules, parameter files, build notes for a repeatable platform |
The two lines most often underestimated are integration and bench time, and iteration parts. A research platform is rebuilt many times by design, so the interface that takes a week to adapt every iteration, rather than a day, is the single largest hidden recurring cost.
Research builds blur the line between supplier and user because the lab modifies the platform. Agreeing that boundary at the start keeps the platform reproducible.
| Item | Supplier responsibility | Operator responsibility |
|---|---|---|
| Platform baseline and interfaces | Deliver platform to the agreed mechanical and electrical interface standard | Keep the interface documented and under version control as the lab modifies it |
| Protocol and API support | Supply MAVLink, ROS 2 and documented bridge interfaces | Maintain the lab-side software stack and its own versioning |
| Custom mount and adaptation | Produce the mount to the supplied CAD model | Provide accurate CAD and confirm fit before flight |
| Parameter and log format | Supply parameter files and the expected log format | Record and archive logs per experiment |
| Reproducibility data | Provide wiring schedule, parameter set and build notes | Keep the platform state matching the documented configuration |
| Firmware and configuration change | Notify on any firmware change affecting interfaces or parameter naming | Re-baseline parameters and re-run the acceptance set after any firmware change |
The last clause matters most in a research context. Parameter names and bridge interfaces change between firmware versions, and a platform whose parameters no longer match its documentation is a platform that cannot be reproduced.
Both are published with their full engineering data, and both were built to be modified rather than fixed in place.
The full parameter set for the lidar mapping platform reference architecture is published in full on our projects pages.
These convert the tables above into language that can be attached to an RFQ, so the platform stays reproducible after the first rebuild.
Research airframes fail differently from production fleets. Because the sensor payload changes every few months, the failure patterns concentrate on the interfaces that were designed for the previous sensor rather than on the airframe itself.
| Failure mode | Share of research returns | Bench behaviour vs field behaviour | Design fix |
|---|---|---|---|
| Payload bay re-drilled for a new sensor, structural margin consumed | ~28% | Static load case passes; fatigue margin quietly disappears after the second or third swap | Specify a standard bolt pattern and mass budget that survives the sensor swaps you already know are coming |
| Power rail undersized for the newest sensor | ~24% | Bench draw measured with one sensor; flight carries the sensor plus recorder plus downlink together | Budget the rail for the sum of transient peaks with headroom for one future addition |
| Companion computer thermal throttling during long acquisitions | ~18% | Cools on an open bench; throttles inside a closed bay in direct sun | Require a thermal path from the compute module to an external surface, not an internal fan |
| Timestamp and sync loss across heterogeneous sensors | ~13% | Bench sync verified with one device; field run reveals drift between two clocks | Demand a documented time-sync architecture and a per-run sync check in the log |
| Interface hardware reused past its design cycles | ~10% | Connector rated for a handful of mating cycles gets dozens during a research campaign | Treat high-cycle connectors as consumable and specify replacements in the spares list |
| Firmware branch diverging between lab and field builds | ~7% | Lab build tested thoroughly; field build is whatever was flashed last | Require version reporting in the telemetry so the flown build is identifiable |
The first two rows together are more than half of research returns, and both are consequences of a platform whose payload changes faster than its interfaces do. The practical response is to design the bay and the power rail for a class of sensors, not for the specific one on the bench today. The next sections cover the cost and verification side of that decision, and the broader capability range we build from covers the integration work itself.
Research programmes rarely order in volume, which means they carry the full weight of tooling and first-article cost on every build. Understanding where that cost sits is the difference between a realistic timeline and a budget surprise.
| Order quantity | Tooling + first-article share | Typical lead time | What changes at this volume |
|---|---|---|---|
| 1 unit, novel configuration | 60-80% of unit price | 6-9 weeks | Nothing is reusable; every interface is designed fresh |
| 1-3 units, minor variants | 35-50% | 5-7 weeks | Airframe and bay tooling carry over; payload interface changes |
| 4-10 units, shared platform | 20-30% | 4-6 weeks | Standard bay pattern pays off; sensor swaps become configuration, not redesign |
| 11-30 units | 10-18% | 4-5 weeks | Firmware and calibration procedures stabilise across the fleet |
| 30+ units | under 10% | 3-5 weeks | Lead time is dominated by component procurement, not integration |
The point for a research team is that the second build is dramatically cheaper than the first if the first one committed to interfaces that can be reused. A research platform bought as a one-off with a bespoke bay costs the full first-article premium again the moment the sensor changes. Quoting tooling and first-article cost as a separate line makes that trade visible and lets the interface investment be judged on its own, which is easiest to do against a configured quotation.
A research airframe is reconfigured far more often than a production one, so the verification question is not "how often do we check" but "what has to be re-checked after each change". The table below ties the re-check scope to the type of change.
| Change made | Re-check scope | Acceptance criterion | Escalation action |
|---|---|---|---|
| Sensor swapped, same mass class | Mass and balance, power rail draw, mount torque | Within the recorded design band | Re-balance before next flight |
| Sensor swapped, different mass class | Full balance plus a structural check of the bay | Fatigue margin recomputed against the new mass | Reinforce the bay if margin is below the programme minimum |
| Firmware update | Parameter audit, time-sync check, failsafe behaviour | Every changed parameter identified and its effect understood | Roll back if any parameter effect is unknown |
| Power architecture change | Transient load step at worst-case draw | No regulator dropout across the full flight profile | Upsize the rail before flight |
| Annual or post-incident | Full platform re-acceptance against original criteria | Passes the same matrix used at first article | Return to supplier for reconditioning |
The firmware row is the one most often skipped, and it is the one with the widest blast radius: a parameter renamed in an update can silently change failsafe behaviour without any hardware change at all. Requiring the flown firmware version to be reported in telemetry turns that from an assumption into a check. The verification discipline this rests on is described in our production and verification process.
Because a research platform is expected to change, acceptance has to test the interface, not just the configuration delivered. The rows marked "not sampleable" are the ones that make every future reconfiguration cheaper, and they are also the ones easiest to leave out under a deadline.
| Item | Method | Record produced | Can it be sampled? |
|---|---|---|---|
| Payload bay bolt pattern and load rating | Dimensional check plus a documented load rating | Drawing and rating per bay | No, record per configuration |
| Power rail transient response | Load step at worst-case draw with headroom | Per-unit waveform capture | Yes, AQL sample |
| Companion computer thermal margin | Soak at worst-case ambient with the bay closed | Per-unit thermal figure | No, record per configuration |
| Time-sync architecture | Documented design plus a per-run sync check in the log | Sync architecture document | No, document per platform |
| Firmware version reporting in telemetry | Verify the flown build is identifiable from the log | Per-unit verification | No, verify per unit |
| As-built mass, centre of gravity and inertia | Scale, balance fixture and a documented inertia estimate | Per-unit figures against the design band | No, record per unit |
Four of these six rows are interface records rather than product records, which reflects what a research platform actually is: a stable interface with an interchangeable payload. A supplier who will only accept on the delivered configuration, and not on the interface underneath it, leaves you paying first-article cost again at the next sensor change. Bring the research brief and we will return the acceptance matrix itemised the same way: describe the objective and we will frame the platform.
Tell us about your research domain, sensor requirements, flight profile and prototype timeline. We will map a modular component stack that accelerates your experimental cycle from bench to field.
