UAV Components for Agriculture

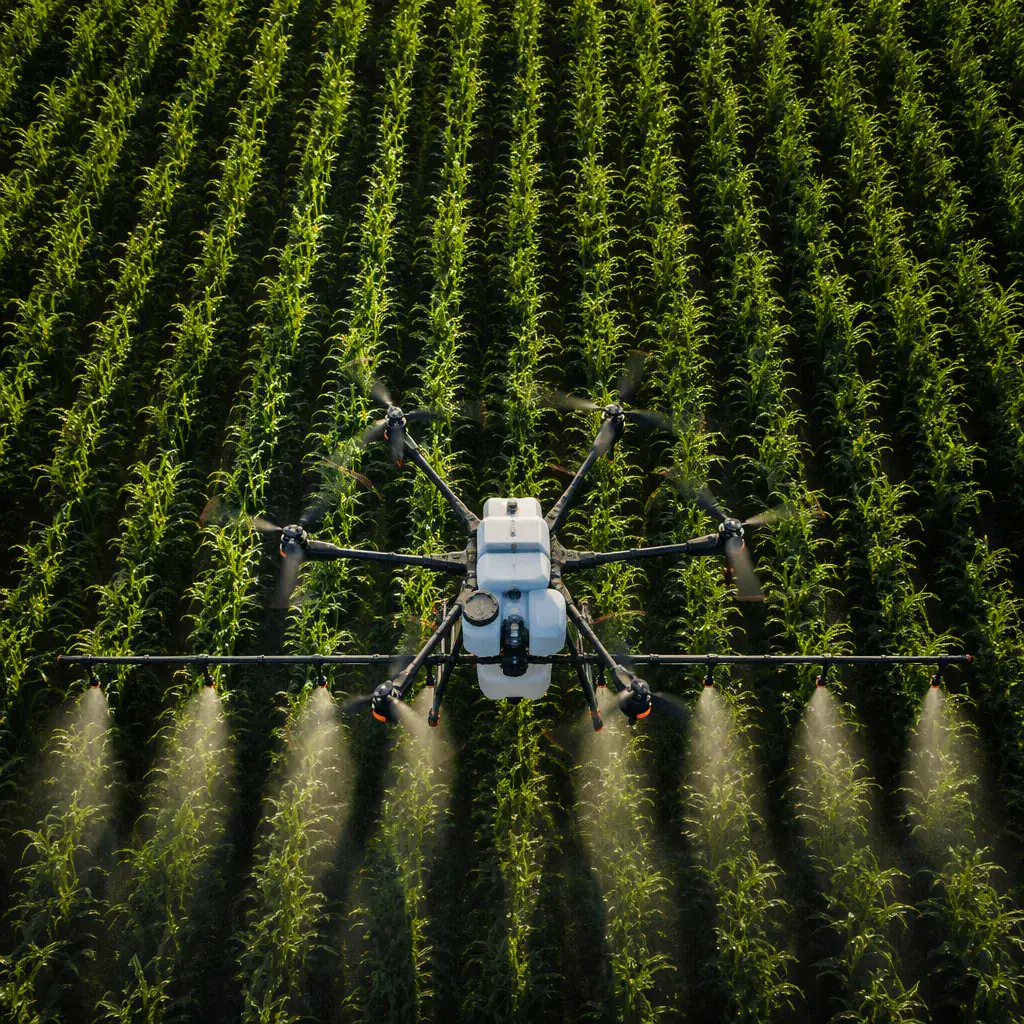

Conceptual agricultural octocopter spraying drone operating over terraced farmland with terrain-following radar visualization

SPRAY PATH / ACTIVECONCEPT VISUAL

Industry Challenges

Agriculture demands scale, chemical resilience and variable-terrain intelligence.

Agricultural UAVs operate in fundamentally different conditions than any other drone category. A spraying platform must carry 10-40 liters of liquid chemical payload while maintaining stable flight at 1.5-3 meters above crop canopy across undulating terrain. The propulsion system must deliver 15-25 kg of total thrust with enough margin to handle variable payload mass as the tank empties. Every exposed surface must resist corrosion from fertilizers, pesticides and herbicides. The flight controller must fuse radar or LiDAR altimeter data for true terrain following, not just barometric altitude hold, because a 1-meter altitude error changes spray drift, coverage uniformity and chemical efficacy across the field. Field-edge obstacles like power lines and windbreaks require obstacle-awareness sensors. Then there is the operational tempo: agricultural UAVs may fly 20-40 sorties per day during a narrow spray window, demanding hot-swap battery systems, rapid tank refill interfaces and component durability measured in hundreds of flight hours per season.

Deliver consistent spray coverage across variable terrain and crop heights
Protect electronics, motors and structure from corrosive agricultural chemicals
Maintain stable flight as payload mass decreases from full tank to empty
Operate at high duty cycles during short seasonal spray windows

Technical Requirements

Heavy lift, terrain awareness and chemical hardening define the ag stack.

Agricultural platforms are engineered for sustained high-power operation in chemically aggressive environments.

01 / Lift

Heavy-lift propulsion with duty-cycle endurance

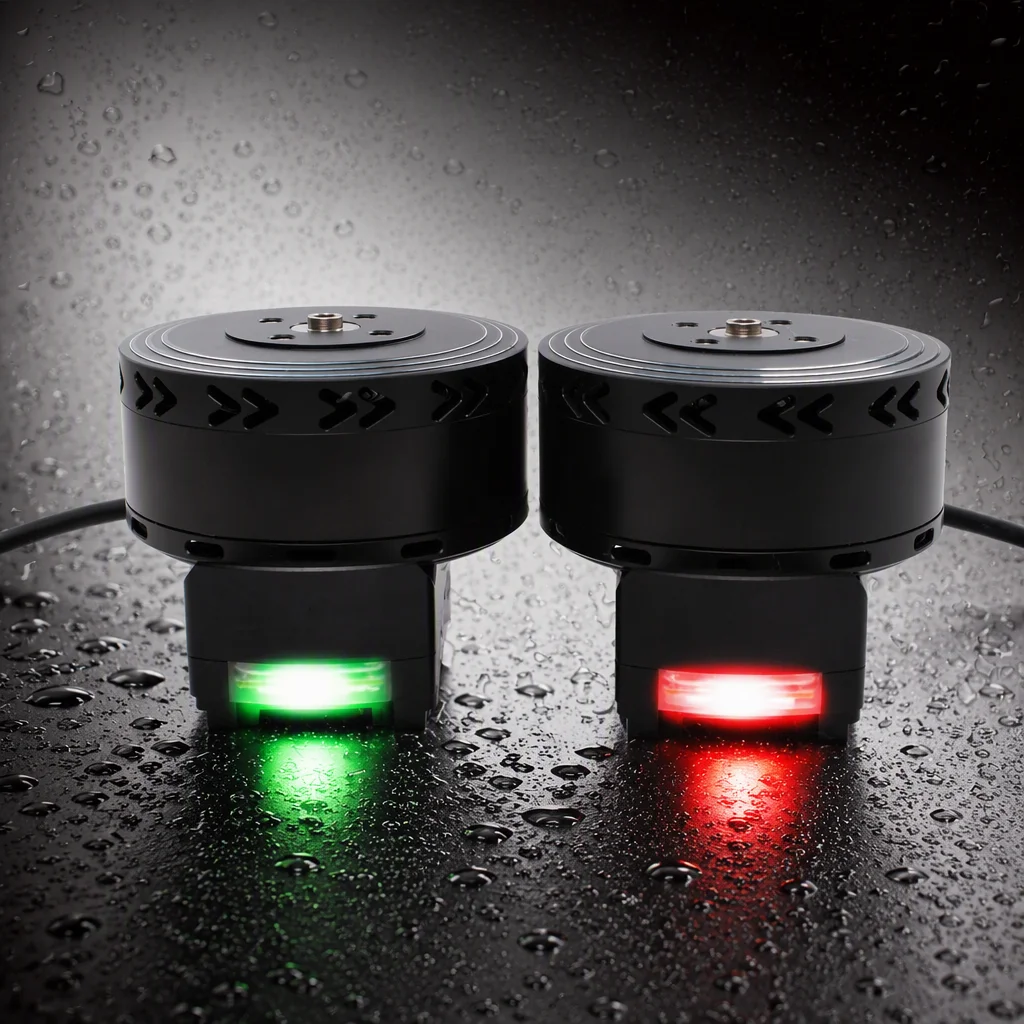

Agricultural multi-rotors require motors in the 6215-10015 class with stator sizes of 60-100mm, driving 24-34 inch propellers at 6S-14S voltage. Thrust-to-weight ratio must exceed 2.0:1 at maximum takeoff mass (aircraft + full tank). ESCs rated at 80-150A continuous with active cooling and thermal throttling protection are essential. Motor bearings must be sealed against chemical ingress, and winding insulation must withstand prolonged exposure to agricultural chemical mist. Hot-swap battery connectors and parallel battery configurations enable rapid turnaround between sorties.

02 / Navigation

Terrain-following radar or LiDAR altimeter

True terrain following requires a millimeter-wave radar altimeter or scanning LiDAR that measures distance to crop canopy (not ground) at 20-100 Hz update rate. The flight controller fuses this with barometric altitude, IMU data and GNSS to maintain a consistent above-canopy height regardless of terrain slope, crop height variation or barometric drift. This is critical for spray uniformity: a 0.5-meter altitude variation changes the effective swath width and droplet deposition pattern. Terrain-following also prevents ground strikes on ridgelines and maintains safe clearance under power lines at field edges.

03 / Spray System

Integrated spray nozzle and pump architecture

The spray system includes a chemical-resistant tank (HDPE or fiberglass), diaphragm or centrifugal pump (2-8 L/min flow rate), pressure-regulated nozzle boom with 2-8 atomizing nozzles, and a flow meter that reports real-time application rate to the flight controller. Spray width is determined by boom length (2-6 meters) and nozzle selection. The FC adjusts pump speed to maintain target application rate (liters per hectare) as groundspeed varies. Droplet size control via nozzle pressure or rotary atomizer affects drift characteristics; larger droplets reduce drift but require higher application volume for coverage.

04 / Sensing

Multispectral NDVI and crop health imaging

For crop monitoring variants, a multispectral camera (such as MicaSense RedEdge-MX or DJI Multispectral) captures calibrated reflectance in blue, green, red, red-edge and near-infrared bands. NDVI, NDRE and other vegetation indices are computed from reflectance data to map crop vigor, identify pest or disease stress, detect irrigation issues and estimate yield potential. The camera must include a downwelling light sensor for ambient light compensation and a calibrated reflectance panel for radiometric accuracy across multiple flights.

Recommended Component Stack

A system-level starting point for agricultural platforms.

Spraying, spreading and monitoring each pull from the same component categories with different payload weightings.

Flight Controller	Cube Orange+ / Pixhawk 6X with ArduCopter firmware; terrain-following enabled via radar/LiDAR rangefinder input; spray-system integration with flow-meter feedback and variable-rate application control; autonomous grid mission planning with spray-on/spray-off waypoint actions
Propulsion	8x 6215-210KV motors with 24-inch folding propellers (octocopter); 8x 80A continuous agricultural-rated ESCs with conformal coating; 12S 22,000-44,000mAh battery packs with hot-swap XT90-S connectors; thrust-to-weight ≥2.2:1 at full tank MTOW
Spray System	20-30L HDPE chemical-resistant tank; 4-6 L/min diaphragm pump with pressure regulation; 3-4 meter carbon fiber boom with 6-8 centrifugal atomizing nozzles; electronic flow meter with 0.1 L/min resolution; quick-connect fill port for rapid tank refill
Terrain Sensor	Millimeter-wave radar altimeter (Teraranger or equivalent) with 0.5-40m range; update rate ≥50 Hz; IP67 rated housing; fused with barometer and GNSS in EKF for crop-canopy height hold with ±0.3m accuracy
Airframe	Octocopter frame (1200-1500mm wheelbase) with foldable arms for transport; carbon fiber construction with chemical-resistant epoxy; sealed electronics bay with positive-pressure ventilation; quick-release tank and boom mounts for configuration change between spray and spread applications
Optional: Multispectral	MicaSense RedEdge-MX (5-band) or equivalent; downwelling light sensor and calibrated reflectance panel; camera trigger by distance from flight controller; compatible with Pix4Dfields or Agremo for vegetation index processing and prescription map generation

Typical Configurations

Three platform archetypes for agricultural missions.

These configurations represent proven starting points; tank capacity, swath width and terrain profile determine the final architecture.

Configuration / A

Crop Spraying Octocopter

Large-frame octocopter (1300-1500mm) with 20-30L spray tank, 4-6m boom with centrifugal atomizing nozzles, and millimeter-wave radar terrain following. Covers 8-12 hectares per hour at 4-6 m/s flight speed with 4-8m effective swath width. Autonomous grid mission with spray-on/spray-off at field boundaries. Hot-swap battery and quick-fill tank enable 20+ sorties per day. Flow-meter feedback adjusts pump rate for consistent liters-per-hectare application regardless of groundspeed variation.

Configuration / B

Seeding & Granular Spreader

Octocopter platform with granular spreader hopper (15-25 kg capacity) replacing the liquid spray system. Motorized spinner disc with adjustable aperture controls spread width (3-8m) and application rate. Flight controller manages spreader motor speed relative to groundspeed for uniform seed or fertilizer distribution. Terrain-following radar maintains consistent above-canopy height for predictable spread pattern. Suitable for rice seeding, cover crop establishment, pasture over-seeding and granular fertilizer application on terrain unsuitable for ground spreaders.

Configuration / C

NDVI Crop Monitoring Quad

Lighter-frame quadcopter (650-800mm) dedicated to multispectral survey rather than payload application. Carries a 5-band multispectral camera with downwelling light sensor for calibrated vegetation index mapping. Autonomous grid flight at 60-120m AGL covering 80-200 hectares per flight for NDVI, NDRE and chlorophyll index mapping. RTK GNSS for repeatable flight paths across multiple survey dates to enable time-series crop health trend analysis. Outputs prescription maps for variable-rate fertilizer, irrigation or pesticide application.

Environmental Protection

Chemical resistance and waterproofing standards for ag UAVs.

Agricultural chemicals are aggressive; component protection is not optional.

IP65 or higher rating for all exposed electronics enclosures: protected against low-pressure water jets and dust ingress
Conformal coating on ESC PCBs, flight controller boards and power distribution circuits to resist chemical corrosion
Sealed motor bearings (rubber shield or contact seal) with corrosion-resistant stainless steel races and chemical-resistant grease
Chemical-resistant tank and plumbing materials: HDPE, PTFE, EPDM and 316 stainless steel for all wetted components
Quick-disconnect fittings on all fluid lines for post-operation flushing with clean water to remove residual chemical
Sealed connectors (JST-SM or similar with rubber boot) on all external electrical interfaces; gold-plated contacts for corrosion resistance
Positive-pressure ventilation of main electronics bay with filtered air intake to prevent chemical mist ingress during spray operations
Post-operation cleaning protocol: fresh-water flush of spray system, wipe-down of airframe surfaces, inspection of seals and connectors

Cost Structure

Where the budget in an agricultural UAV actually goes.

Buyers comparing quotes across suppliers need to know which line item each quote is really competing on. The hardware bill is the most visible and the least decisive.

Cost item	Typical order of magnitude	What drives it
Airframe and propulsion hardware	20-30% of platform cost	Airframe size, coaxial vs flat layout, motor class, propeller diameter
Spray system (tank, pump, boom, nozzles)	10-18%	Tank volume, nozzle count and material, flow-control sophistication
Avionics, RTK and terrain sensing	12-20%	Redundancy level, RTK moving-baseline support, radar vs barometer terrain following
Field engineering, network and power	15-25%	Site access, charging infrastructure, GNSS base station, operator training
Consumables and spare parts	8-15% per season	Nozzle wear, propeller attrition, pump seals, battery cycle replacement
Integration, commissioning and verification	10-20%	Swath calibration, spray pattern testing, first-article flight validation

Two rows are systematically underestimated in first-pass quotes. Field engineering covers the base station, the charging bay and the operator training that turn a delivered airframe into a working fleet, and consumables recur every season rather than once. A quote that is 20% cheaper on hardware can be 40% more expensive over three seasons once those two lines are honestly accounted for. Bringing the full structure into a configured quotation is the only way to compare suppliers on equal terms.

Responsibility Split

What the supplier owes you and what stays with the operator.

Agricultural UAVs operate in a shared space between the component supplier, the platform integrator and the spraying operator. Ambiguity here is where disputes and downtime originate.

Item	Supplier responsibility	Operator responsibility
Airframe structural integrity	Deliver within stated load and vibration limits; publish stiffness and modal data	Do not exceed rated spray payload; inspect for cracks after hard landings
Spray system calibration	Provide flow curves and nozzle maps for the rated pressure range	Re-verify swath width and droplet class for each crop and chemical
Chemical compatibility	State which tank, seal and nozzle materials are rated for which chemical classes	Flush the system after every session; replace seals on the stated cycle
RTK and terrain following	Deliver positioning accuracy figures under stated GNSS conditions	Maintain the base station; re-survey fields after significant terrain change
Battery and power system	Publish cycle life and safe charge/discharge envelopes	Follow charge protocol; retire packs at the stated cycle limit
Firmware and flight profiles	Provide a change log and re-verification guidance for each release	Re-run spray calibration and terrain-following checks after any firmware change that touches flight or flow control

The last row matters most in agriculture, where a firmware update that adjusts altitude control or flow regulation silently invalidates a swath calibration. Treating firmware changes as a recalibration trigger, not a routine update, is the difference between a compliant application record and an unverifiable one.

Reference Builds

Two real platforms behind these numbers.

These are the engineering figures these recommendations are drawn from, part of the capability range we build from rather than theoretical examples.

X8 coaxial agricultural octocopter. A 1,600 mm wheelbase coaxial octocopter carrying a 30 L spray payload at roughly 25 kg MTOW, with 12-15 minutes of working endurance per tank. The arms are 30 mm carbon tubes into CNC aluminium motor mounts, on a high-legged gear giving 350 mm of ground clearance for crop clearance, and a 1,800 mm four-nozzle boom running ceramic hollow-cone nozzles at 1.0 mm orifice for a 120-180 µm droplet class. The coaxial layout is the part that matters commercially: achieving the same thrust margin on a flat octocopter needs a wheelbase beyond 2,100 mm, which changes transport, storage and field access. See the heavy-lift agricultural platform reference build for the full parameter set.
VTOL fixed-wing mapping platform (adjacent discipline). Research and agronomy teams running crop-scouting or yield-mapping missions alongside spraying often need a second platform. A 120-minute usable-endurance VTOL carrying a 5 kg sensor suite splits roughly 68% of its energy to cruise, 22% to payload, 7% to avionics and 3% to transition. Understanding that split matters for spraying too: if you assume payload power scales linearly, you will under-specify the power budget on any multi-role airframe. The VTOL LiDAR mapping platform documents the per-subsystem power breakdown.

Procurement Clauses

Terms worth writing into an agricultural UAV RFQ.

Each of these maps back to a step in our production and verification process, and each turns a vague expectation into something measurable at acceptance.

State the rated spray payload and require the airframe's published stiffness and modal data to be consistent with that figure, not with an unloaded airframe.
Require flow curves and nozzle maps across the full rated pressure range, with a stated tolerance for flow deviation at each pressure point.
Name the chemical classes the tank, seals, pump and nozzles are rated for, and require the material specification behind that rating.
Require RTK positional accuracy figures under stated satellite geometry, and a documented procedure for field re-survey after terrain change.
Require battery cycle life at the stated discharge depth, plus the safe charge and discharge envelope as a written limits table.
Require a firmware change log that flags any release affecting flight control, altitude hold or flow regulation, with the associated recalibration procedure.
Require first-article spray calibration data (swath width, droplet class, coverage uniformity) as an acceptance deliverable, not a commissioning extra.

Ag Platform Brief

Configure Your Agricultural Platform

Describe the crop type, field size, terrain profile, application type (spray/spread/monitor) and typical chemical portfolio. We will frame a component architecture with appropriate chemical hardening.

Cover hectares. Protect crops. Measure yield.
